For Awning Motor

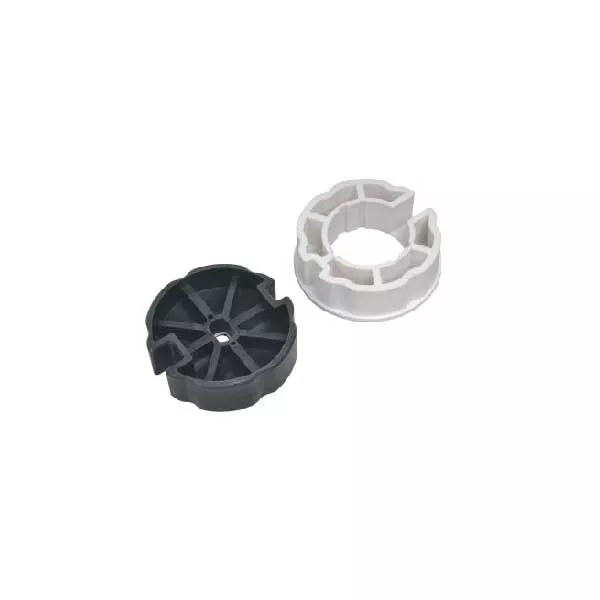

Adapter,Wheel Forφ85mm Steer Roller

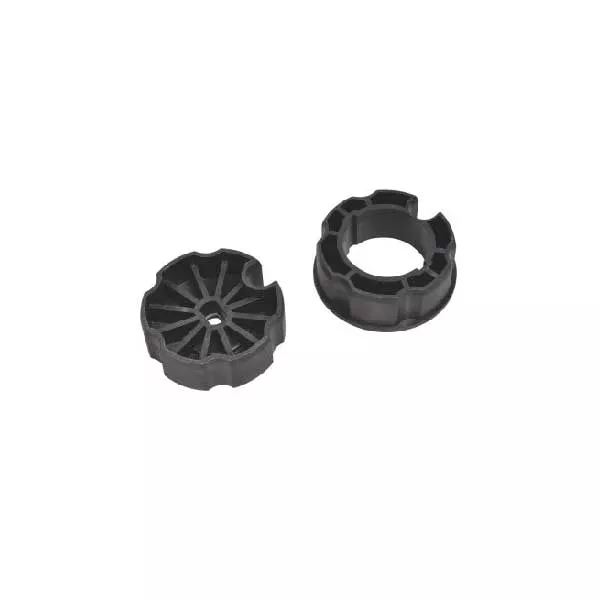

Adapter,Wheel Forφ80mm Alu Roller

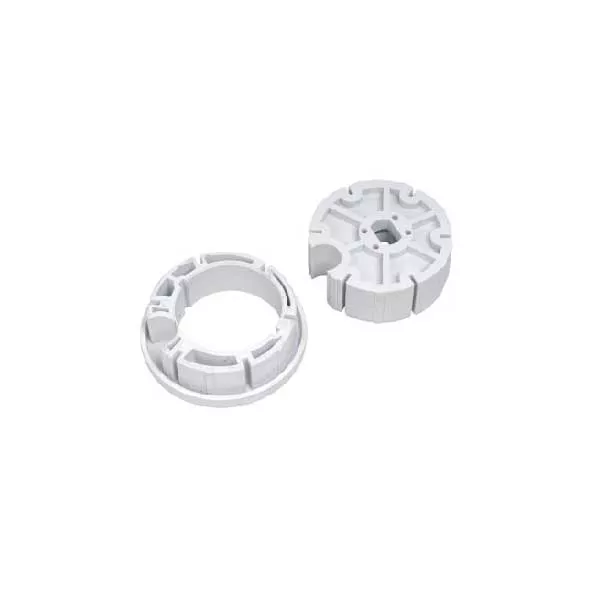

Adapter,Wheel Forφ78mm Alu Roller

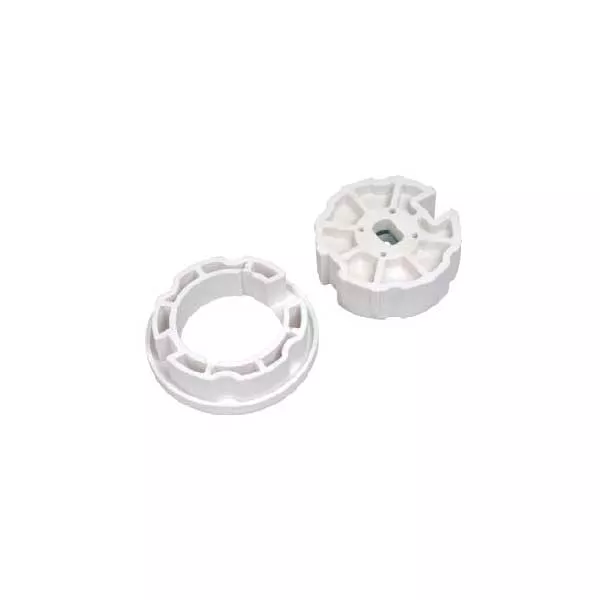

Adapter,Wheel Forφ70mm Alu Roller

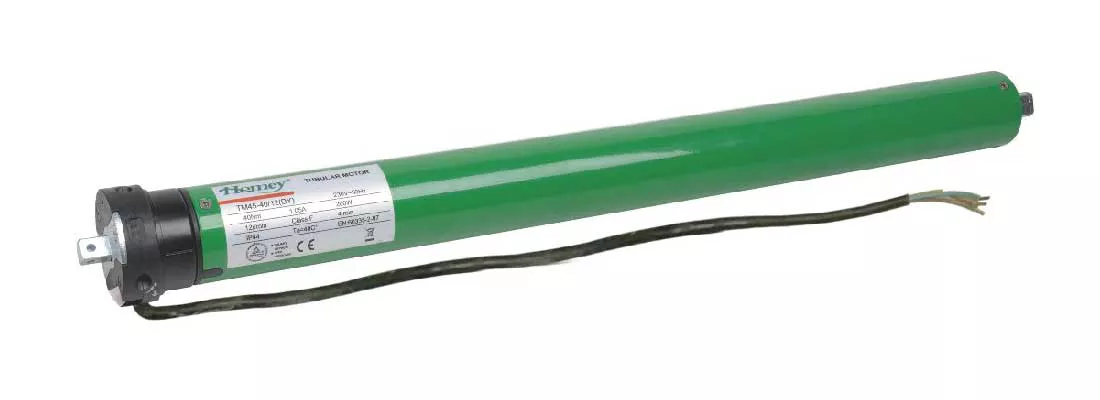

HTM45-SERIES Options for the Remote Controller:A.B.C.D.E.F
1. Ordinary motor can match with the remote and manual switch.

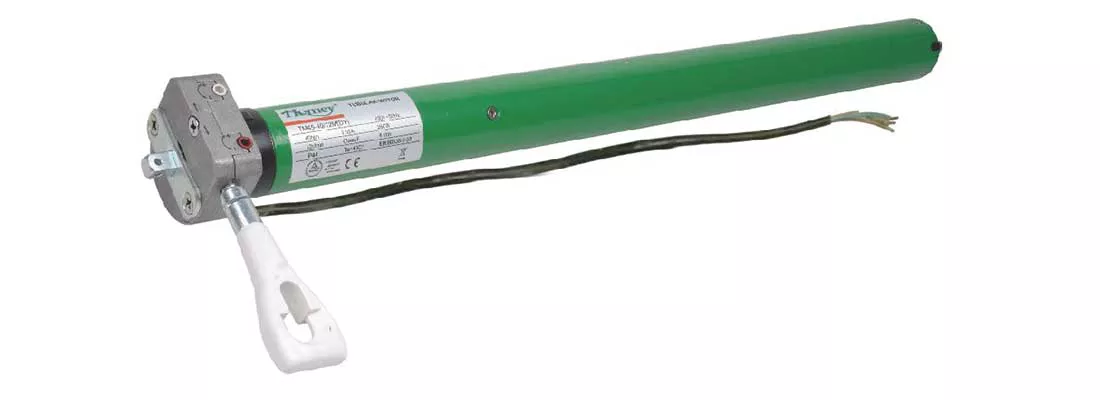

HTM45-SERIES Options for the Remote Controller:A.B.C.D.E.F
2. The double-function motor (For both motorized & manual operation) can match with the remote and manual switch.

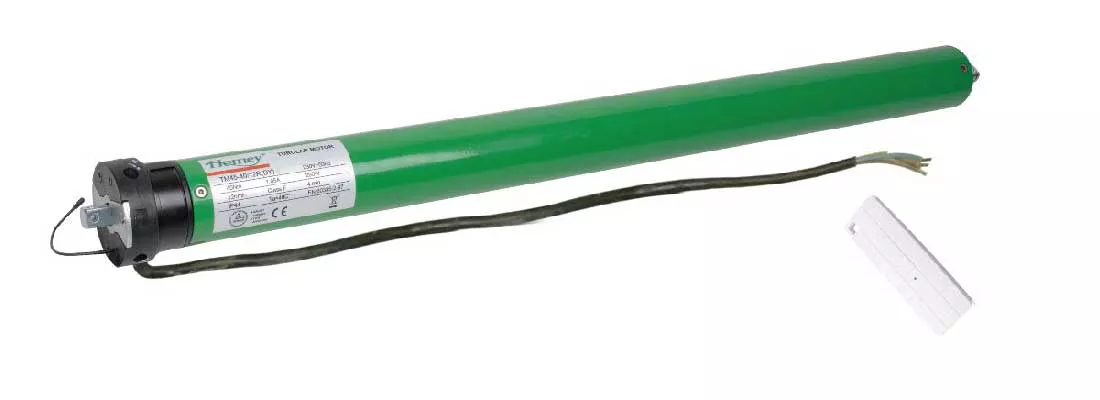

HTM45-R SERIES
3. Ordinary motor with receive build in just can suitable for remote.

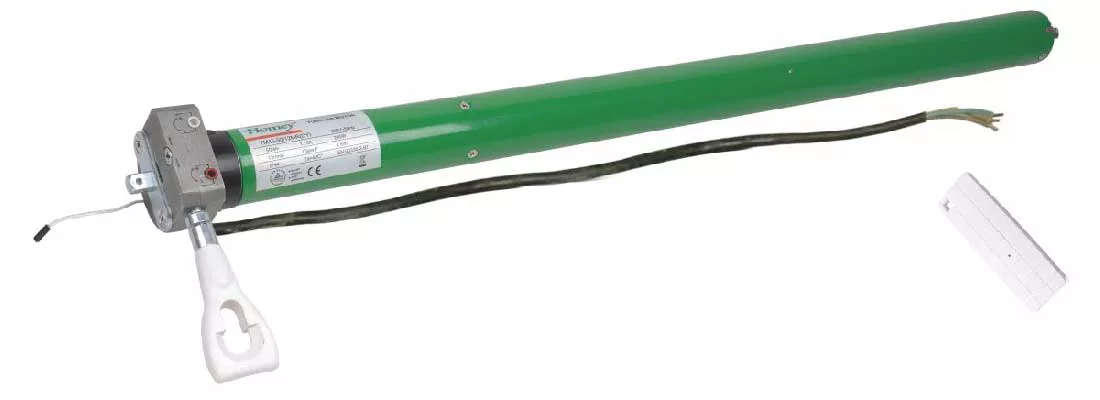

HTM45-MR SERIES
4. The double-function motor (For both motorized & manual operation) with a build-in receiver suitable for the remote controller.
Specification
| Type | Voltage Frequency (V/HZ) | Current (A) | Power (W) | Torque (N/M) | Speed (rpm) | lnsulation Class | Working Time (Min.) | Max Turns (Circle) | Protection Class | Cable Length | Noise Level (dB) |
| HTM45-30/15 HTM45-30/15R HTM45-30/15M HTM45-30/15MR | 230/50 | 0.83 | 191 | 30 | 15 | H | 4 | 22 | IP44 | 1.50 | ≤48 |
| HTM45-40/15 HTM45-40/15R HTM45-40/15M HTM45-40/15MR | 230/50 | 0.86 | 198 | 40 | 15 | H | 4 | 22 | IP44 | 1.50 | ≤52 |
| HTM45-50/15 HTM45-50/15R HTM45-50/15M HTM45-50/15MR | 230/50 | 0.89 | 205 | 50 | 12 | H | 4 | 22 | IP44 | 1.50 | ≤53 |
