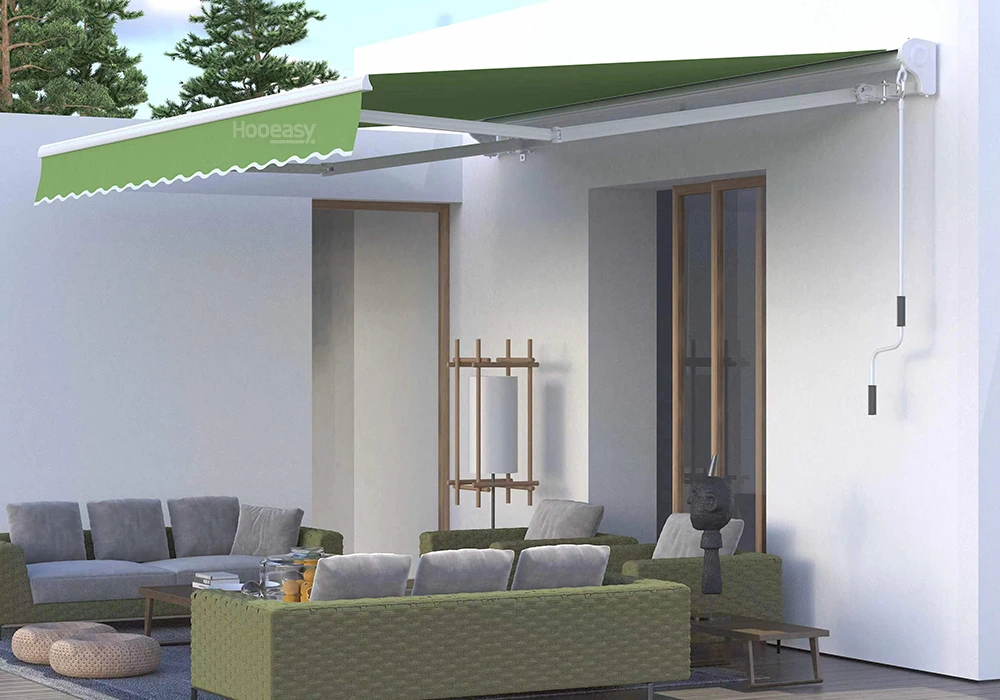

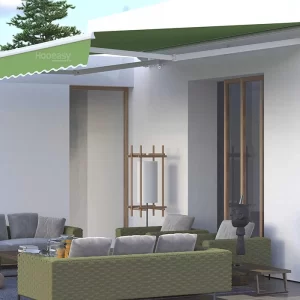

1100B-4

Hooeasy Half-cassette Retractable Awning 1100-B Manual control can shade the sun, double use motor available, UV Protection

Introduction

This is a unique half-cassette retractable awning: Hooeasy 1100-B, with a maximum dimension of 3 meters wide and 3.95 meters long. However, it is not only its outstanding size that is convincing, but also its appearance.

As a half-cassette retractable awning, the bottom of Hooeasy 1100-B is open. Its protective roof fits perfectly into the tilt of the awning and closes tightly to the front bar when contracted. In this way, it can effectively and reliably protect the awning fabric from wind and rain.

  • There are two steel cables in the center joint of arms.
  • Double use motor available.
  • Optional handle angle adjustment.
  • Standard arm shoulder is cast steel material,while aluminum arm shoulder is available.
Contact Us

Feature

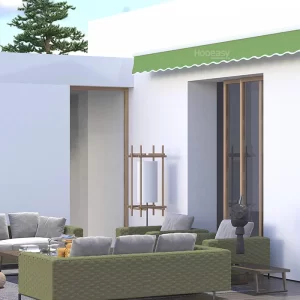

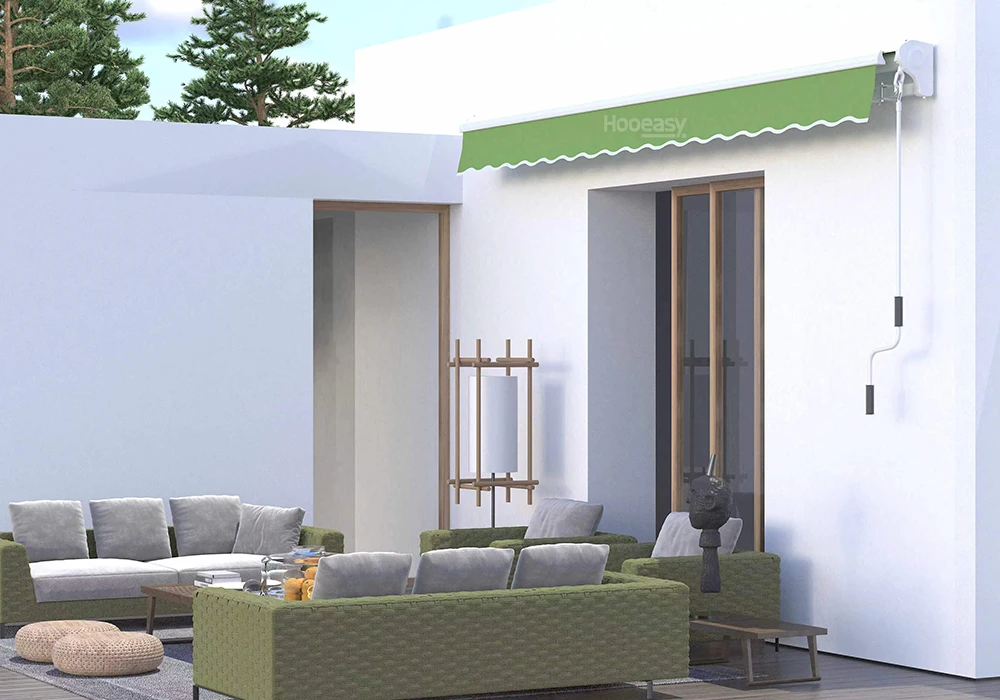

1100B-1

Standard arm shoulder is cast steel material,while aluminum arm shoulder is available.

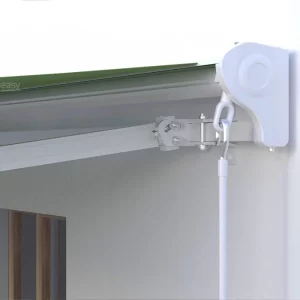

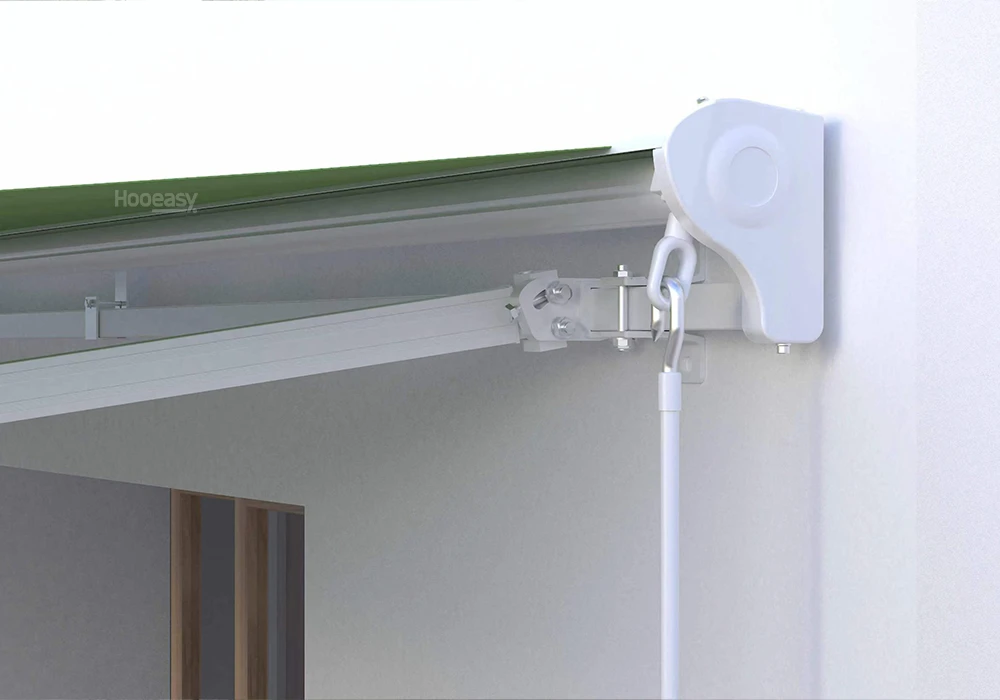

1100B-2

Cassette
Half-cassette 130×35mm

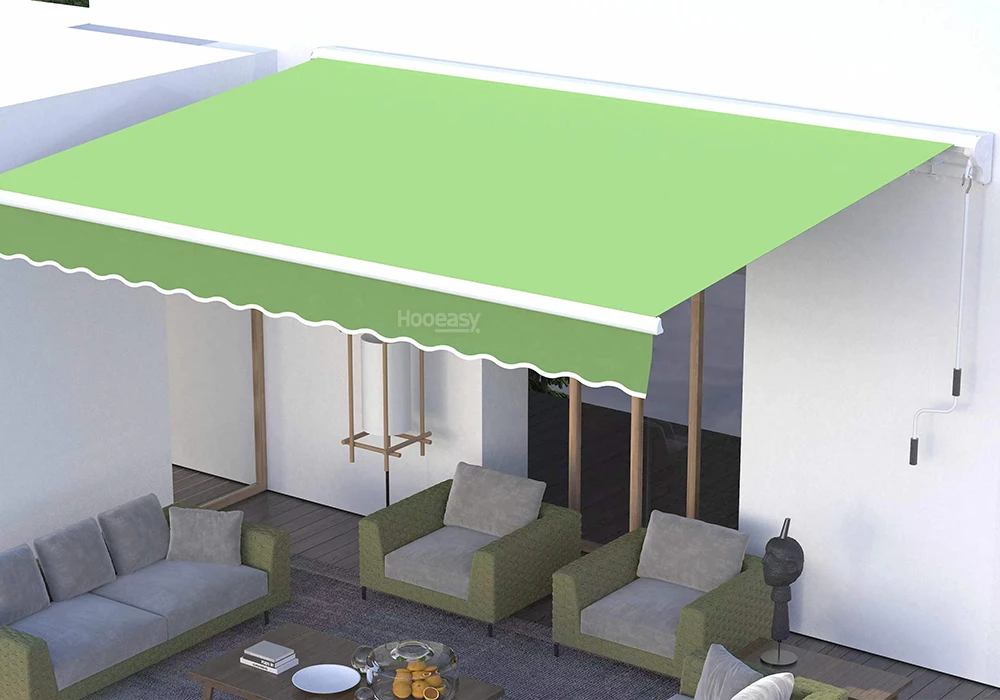

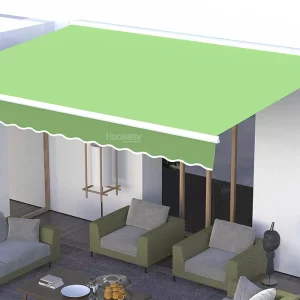

1100B-3

By covering the silhouette of the Hooeasy 1100-B with additional awnings,you simply block out the low-angle sun and prying eyes.

Optional Brackets

Standard Ral-Frame

Specification

SizeCassetteTorsion BarRollerFront Bar
Max.395x250cmHalf-cassette
130x45mm		35x35mmφ60mm47x35mm
Min.120x60cm
Support ArmsFabricGear BoxBracket
Big Arms:47x28cm280g/㎡ Polyester（or Acrylic）+PU Coating1:7Standard:regular wall bracket
Small Arms:37x20cmOptional:bracket for ceiling and wall
Length(cm)Outspread(cm)Carton Size(cm)40’HQ
395300200150399x20x17363pcs
350250200150354x20x17363pcs
295250200150299x20x17484pcs
250200150254x20x17484pcs
195150199x20x17726pcs
160120164x20x17847pcs

What a Pergola or Awning can do for ME

product-2
Lighting for outdoors.

Adjust light exactly as you need it. And to determine the atmosphere. Outside: with Hooeasy.

product-1
Sun protection in all dimensions.

Protect from excessive sun. Regulate the climate completely energy-saving. Put shadows where it is needed quickly: with Hooeasy.

product-3
More space for the summer.

Re-invent the summer seat. Enlarge the house with sunny and shady rooms, even outdoors. Setting up islands for relaxation and relaxation: perfect with awnings.
