Hooeasy Half-cassette Retractable Awning 3430 luxurious half-cassette awning,half-cassette offers protection forthe fabric from the rain water and sunlight,weatherproof

Introduction

The Hooeasy half-cassette retractable awning 3430 is a contemporary interpretation of the classic awning shape. The torsion bar and the cassette harmoniously combine to create an elegant design object. Hooeasy 3430 can be controlled by remote control, and its angle can be adjusted up to 45°.

  • Luxurious awning.
  • Half-cassette offers protection for the fabric from rainwater and sunlight.
  • Motor available.
  • More sturdy and stronger than 3400
  • Awnings for big sizes are equipped with roller centre supporter.
  • The standard arm-shoulder uses cast steel material,while Alu material arm shoulder is available.

Feature

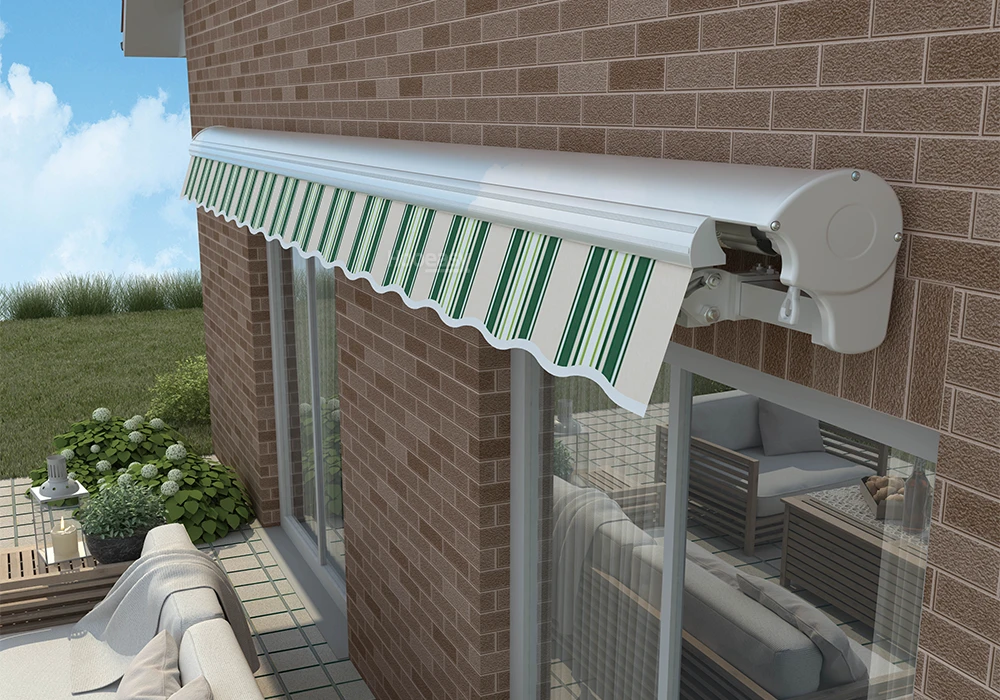

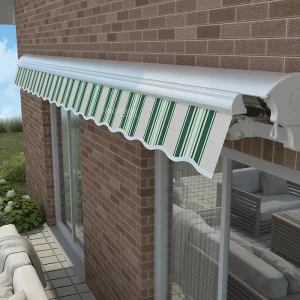

3430-2

Half-cassette offers protection for the fabric from the rain water and sunlight.

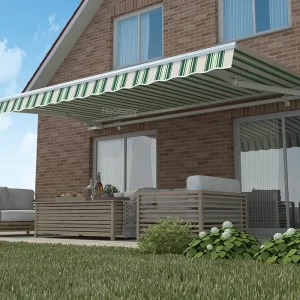

3430-3

The standard arm-shoulder uses the cast steel material,alu material arm shoulder is available.

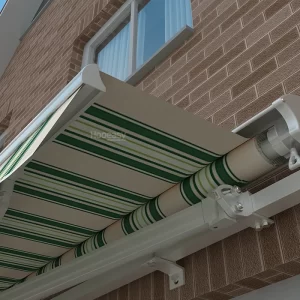

3430-4

Motor is available and it is using stronger aluminum extrusions.

Optional Brackets

Double-use Bracket for Wall&Ceiling
Double-use Bracket for Wall&Ceiling
Regular Wall Bracket
Regular Wall Bracket

Standard Ral-Frame

Ral9010 Milk White
Ral9010 Milk White
PC0102 Grey
PC0102 Grey
PG3314 Black
PG3314 Black
Switch Remote Controller
Switch Remote Controller
Sun)
Weather Sensor(Wind/Sun)
Radiator
Radiator
Angle adjustable
Angle adjustable

Specification

SizeCassetteTorsion BarRollerFront Bar
Max.595x350cmHalf-cassette
151x72mm
40x40mmφ78mm56x43mm
Min.120x60cm
Support ArmsFabricGear BoxBracket
Big Arms:59x31mm280g/㎡ Polyester
(Acrylic)+PU coating
v1:7Standard Regular Wall Bracket
Small Arms:51x26mmOptional:Bracket for ceiling and wall
Length(cm)Outspread(cm)Carton Size(cm)40’HQ
595350300250200150599×21.5×18.5220pcs
550350300250200150554×21.5×18.5220pcs
495350300250200150499×21.5×18.5220pcs
450350300250200150454×21.5×18.5220pcs
395350300250200150399×21.5×18.5330pcs
350300250200150354×21.5×18.5330pcs
295250200150299×21.5×18.5440pcs
250200150254×21.5×18.5440pcs
195150199×21.5×18.5660pcs
160120164×21.5×18.5770pcs

What a Pergola or Awning can do for ME

product-2
Lighting for outdoors.

Adjust light exactly as you need it. And to determine the atmosphere. Outside: with Hooeasy.

product-1
Sun protection in all dimensions.

Protect from excessive sun. Regulate the climate completely energy-saving. Put shadows where it is needed quickly: with Hooeasy.

product-3
More space for the summer.

Re-invent the summer seat. Enlarge the house with sunny and shady rooms, even outdoors. Setting up islands for relaxation and relaxation: perfect with awnings.
