Hooeasy Half-cassette Retractable Awning 3430L for terrace is that the product with wind and sun sensor remote control and LED light, electric outdoor sunshade waterproof fabric, suitable for balcony

Introduction

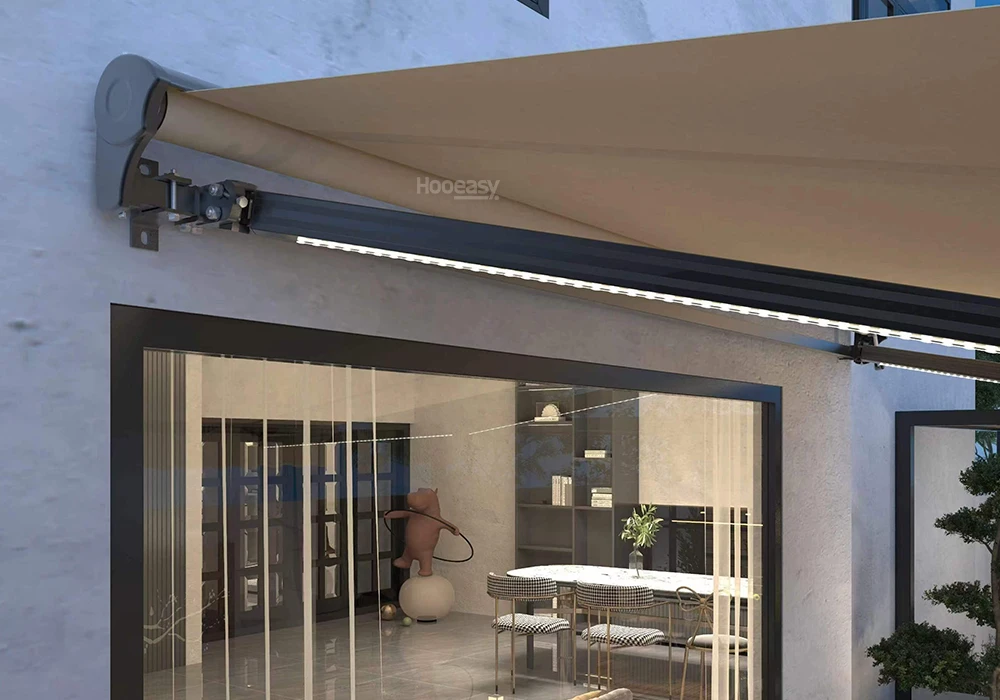

Hooeasy half-cassette retractable awning 3430L is a modern interpretation of the classic awning shape. The torsion bar is harmoniously integrated with the cassette, creating an elegant design piece.

Thanks to its shape, optional LED lighting on the folding arms and the timeless beauty of aluminium, the Hooeasy 3430L is able to shine on almost any terrace with its outstanding look and shape details.

  • Luxurious awning
  • Half-cassette offers protection for the fabric from rainwater and sunlight.
  • Motor available.
  • More sturdy and stronger than 3400
  • Awnings for big sizes are equipped with roller centre supporter.
  • The standard arm-shoulder uses cast steel material,Alu material arm shoulder is available.
Contact Us

Feature

3430L-1

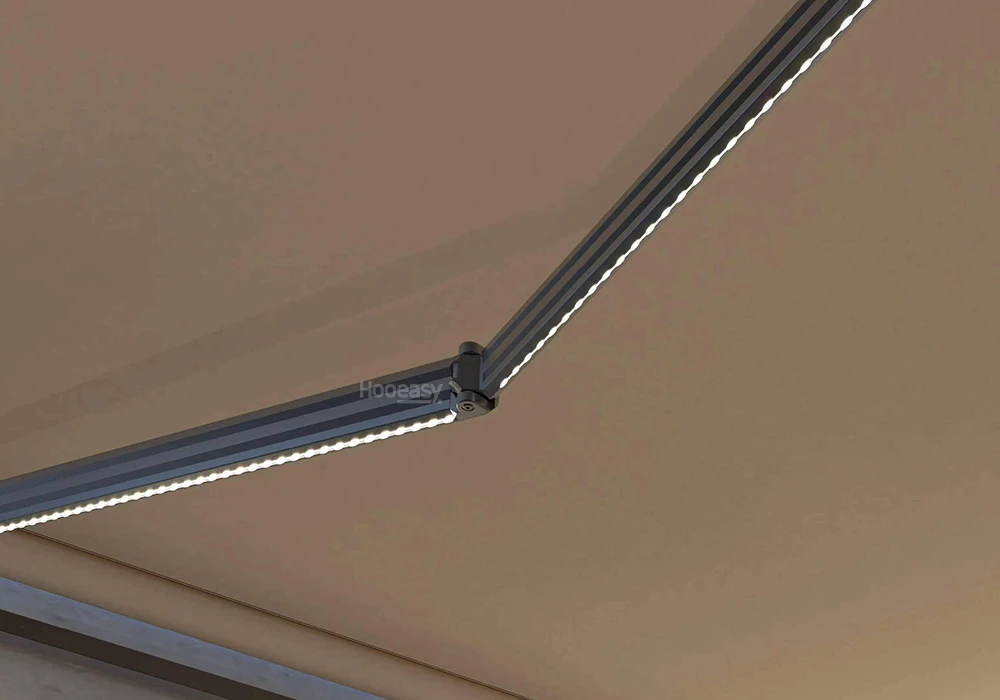

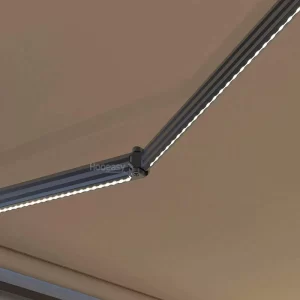

Soft LED light strip

Both installed on the big arm and the small arm.

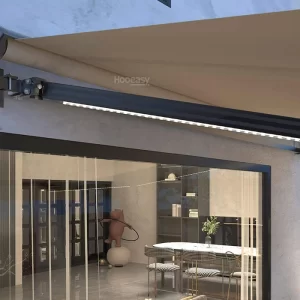

3430L-3
Roller centre

Awnings for big sizes (≥5m) are equipped with roller centre supporter.

3430L-2

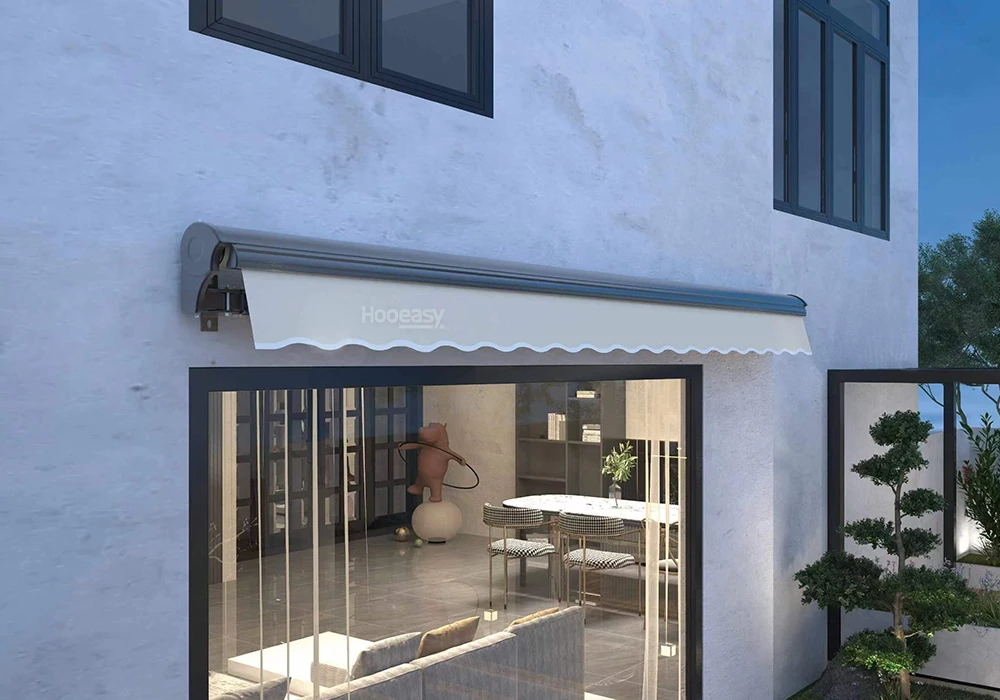

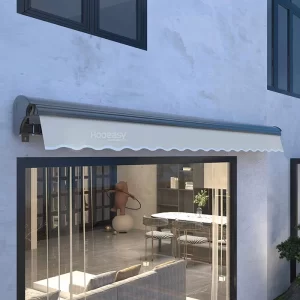

Protection

Half-cassette offers protection for the fabric from rainwater and sunlight.

Optional Brackets

Standard Ral-Frame

Specification

SizeCassetteTorsion BarRollerFront Bar
Max.595x300cmHalf-cassette
151x72mm		40x40mmφ78mm56×43
Min.120x60cm
Support ArmsFabricGear BoxBracket
Big Arms:66x32mm280g/㎡ Polyester(Acrylic)+PU coatingv1:7Standard Regular Wall Bracket
Small Arms:58x27mmOptional：bracket for ceiling and wall
Length(cm)Outspread(cm)Carton Size(cm)40’HQ
595300250200150599×21.5×18.5220pcs
550300250200150554×21.5×18.5220pcs
495350300250200150499×21.5×18.5220pcs
450350300250200150454×21.5×18.5220pcs
395350300250200150399×21.5×18.5330pcs
350300250200150354×21.5×18.5330pcs
295250200150299×21.5×18.5440pcs
250200150254×21.5×18.5440pcs
195150199×21.5×18.5660pcs
160120164×21.5×18.5770pcs

What a Pergola or Awning can do for ME

product-2
Lighting for outdoors.

Adjust light exactly as you need it. And to determine the atmosphere. Outside: with Hooeasy.

product-1
Sun protection in all dimensions.

Protect from excessive sun. Regulate the climate completely energy-saving. Put shadows where it is needed quickly: with Hooeasy.

product-3
More space for the summer.

Re-invent the summer seat. Enlarge the house with sunny and shady rooms, even outdoors. Setting up islands for relaxation and relaxation: perfect with awnings.
