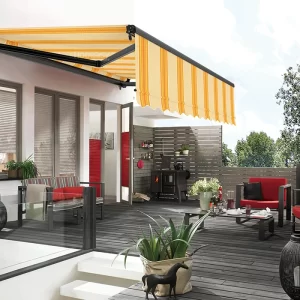

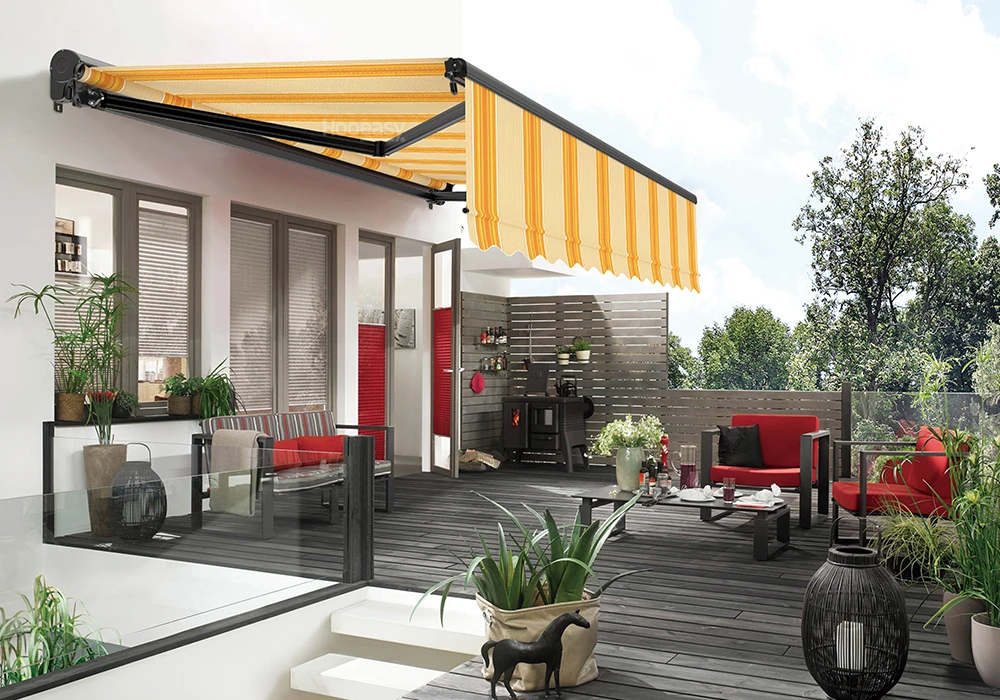

3431-1

Hooeasy Half-cassette Retractable Awning 3431 Aluminum Bracket Awning for Door Awning, Metal Awning for Front Door/Window Overhang Porch Outside Window, for Patio/Deck/Basement UV/Rain Protection

Introduction

Small but powerful!You’ll be surprised at how complex the technology is in this flat 151mm cassette. Hooeasy half-cassette retractable awning 3431 when installed on the ceiling, the awning can be tilted up to 45°, making it ideal for smaller terraces and balconies.

These advantages allow you to enjoy many carefree hours under the most beautiful shade.

  • Luxurious awning
  • Motor available
  • Half-cassette offers protection for the fabric from rainwater and sunlight
  • With double cables in the joints of arms
  • Big size awning with roller centre supporter Valance can be controlled by crank or motor.Its max projection is 120cm to 250cm
  • Standard arm shoulder is cast steel material, while Alu material arm shoulder is available.
Contact Us

Feature

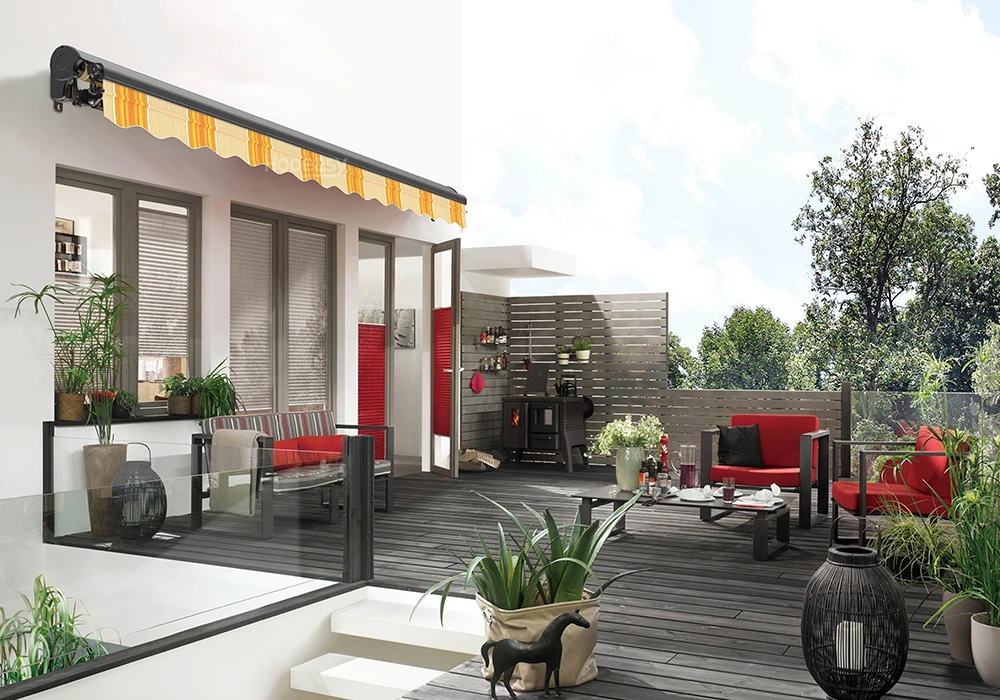

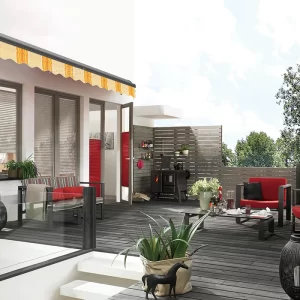

3431-2

Big size awning with roller centre supporter

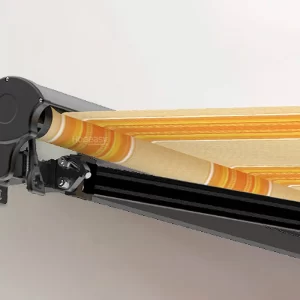

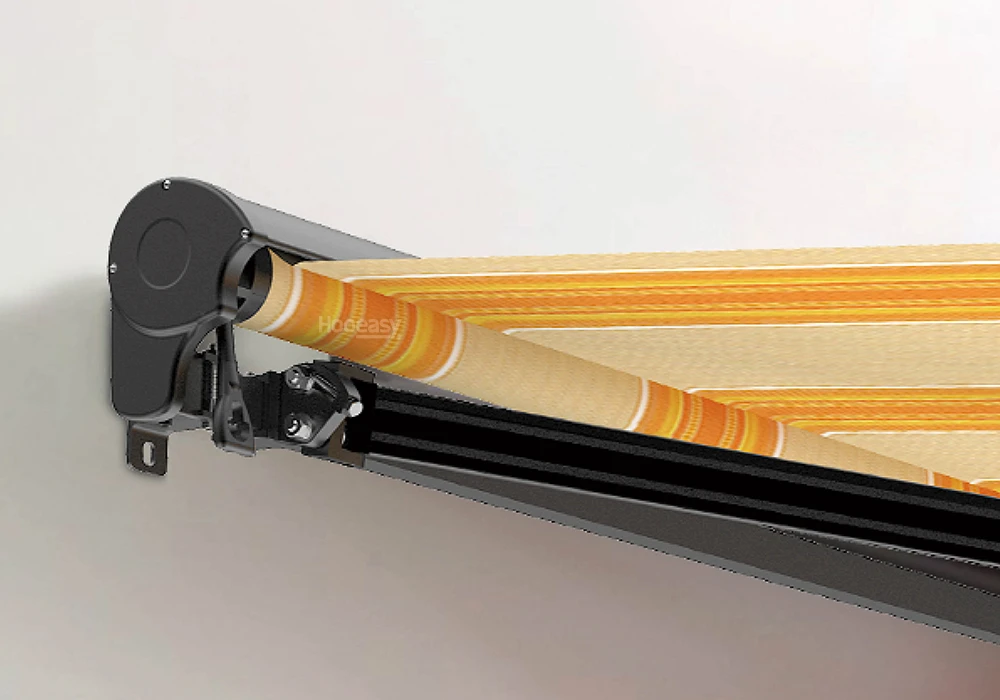

3431-4

Half-cassette 151×72mm

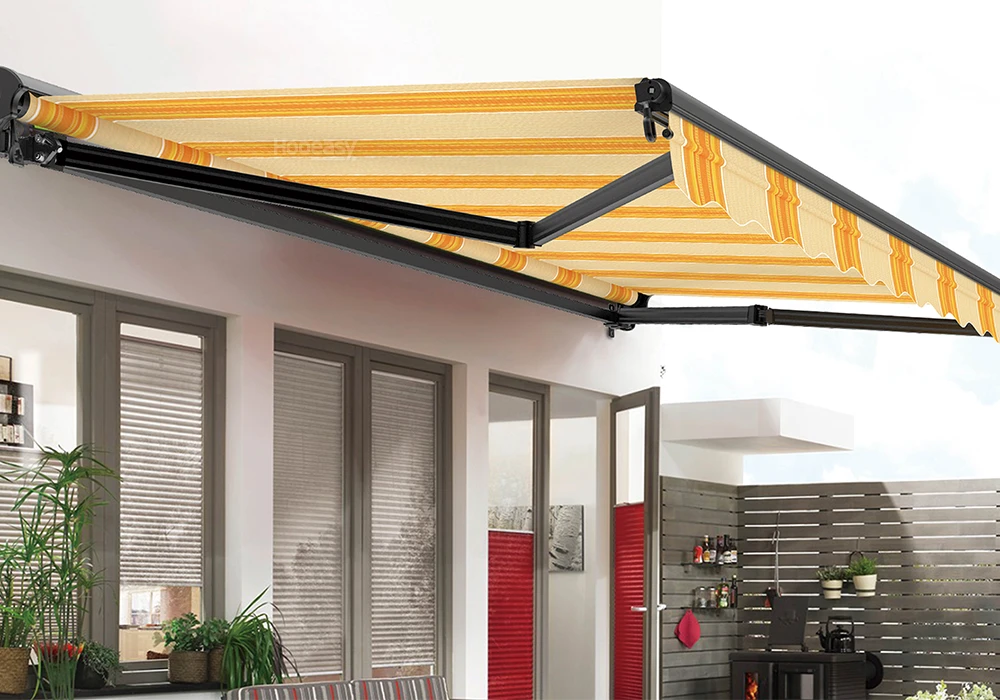

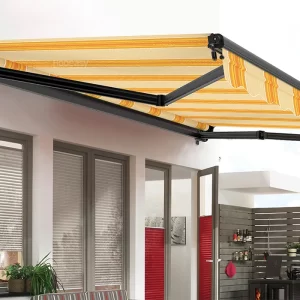

3431-3

The valance can be controlled by handle crank or motor with its height from 120cm to 250cm.

Optional Brackets

Standard Ral-Frame

Specification

SizeCassetteTorsion BarRollerFront BarFront Roller
Max.595x300cmHalf-cassette
151x72mm		40x40mmφ78mm75x67mmφ38mm
Min.120x60cm
Support ArmsFabricGear BoxBracket
Big Arms:59x31mm280g/㎡ Polyester(Acrylic)+PU coatingv1:7Standard Regular Wall Bracket
Small Arms:51x26mmOptional：Bracket for ceiling and wall
Length(cm)Outspread(cm)Carton Size(cm)40’HQ
595300250200150599×21.5×20.5200pcs
550300250200150554×21.5×20.5200pcs
495350300250200150499×21.5×20.5200pcs
450350300250200150454×21.5×20.5200pcs
395350300250200150399×21.5×20.5300pcs
350300250200150354×21.5×20.5300pcs
295250200150299×21.5×20.5400pcs
250200150255×21.5×20.5400pcs
195150200×21.5×20.5600pcs
160120165×21.5×20.5700pcs

What a Pergola or Awning can do for ME

product-2
Lighting for outdoors.

Adjust light exactly as you need it. And to determine the atmosphere. Outside: with Hooeasy.

product-1
Sun protection in all dimensions.

Protect from excessive sun. Regulate the climate completely energy-saving. Put shadows where it is needed quickly: with Hooeasy.

product-3
More space for the summer.

Re-invent the summer seat. Enlarge the house with sunny and shady rooms, even outdoors. Setting up islands for relaxation and relaxation: perfect with awnings.
