Hooeasy Half-cassette Retractable Awning 3432 there are two steel cables in thecentre jolnt of arms, the motor is available, different from tranditional half-cassette awning,no valance

Introduction

Hooeasy 3432 is a half-cassette retractable awning whose retractable version is the ideal sun protection solution for terraces and balconies. Hooeasy 3432 features a sophisticated and timeless design, as well as technical improvements. The ultra-thin cassette protects the awning fabric from dust and moisture when it retracts.

  • There are two steel cables in the centre joint of arms.
  • The motor is available.
  • Different from tranditional half cassette awning.
  • No valance, and you can choose the valance if you require.
Contact Us

Feature

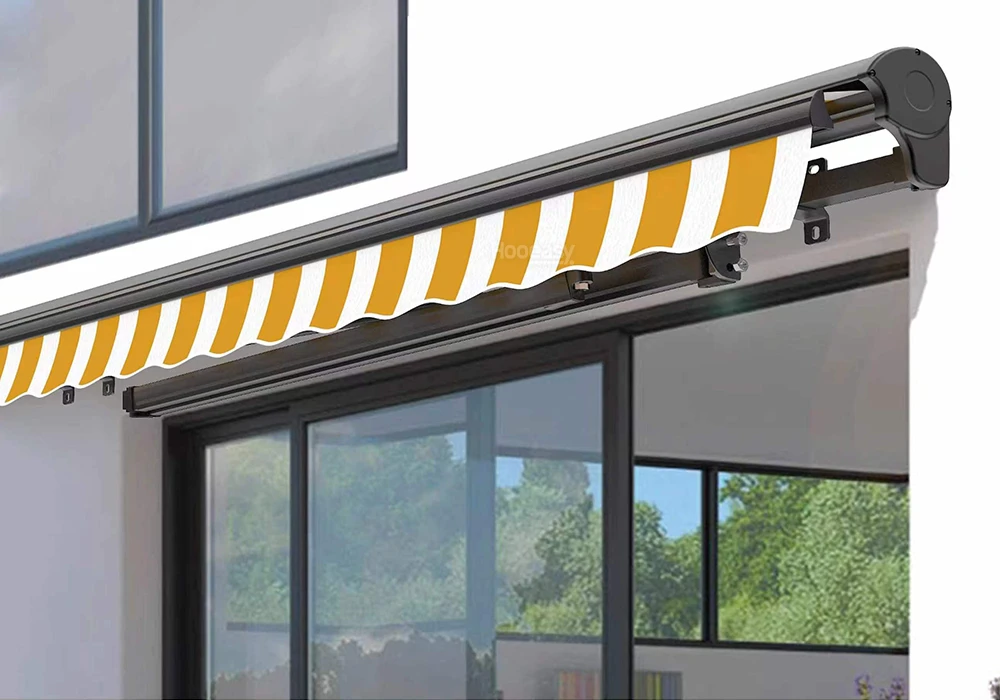

3432-01

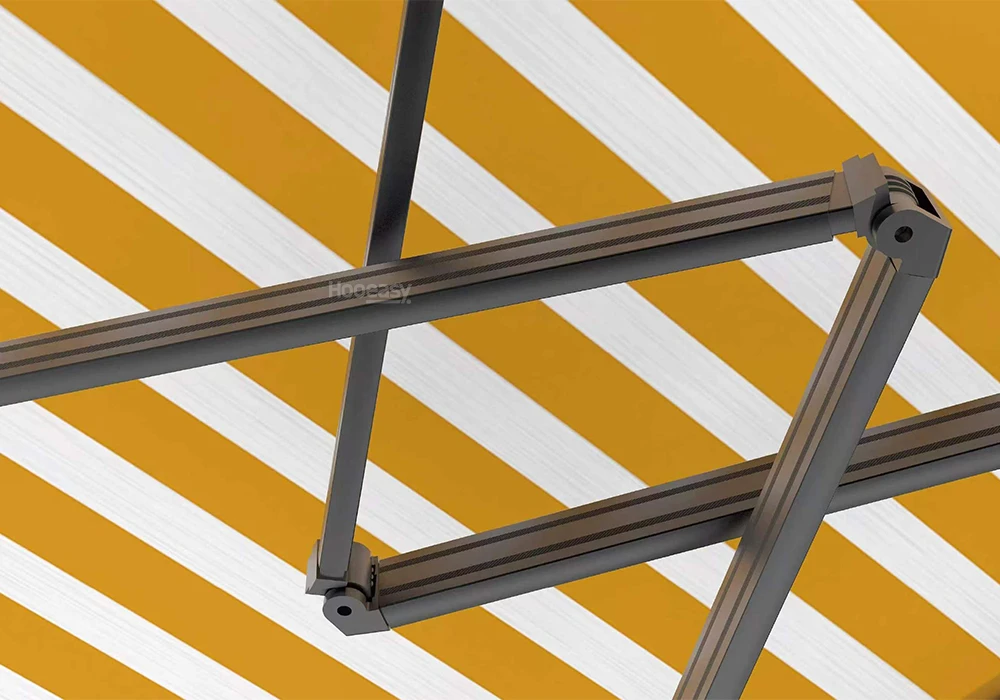

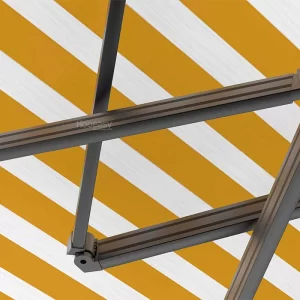

Arm

Standard arm shoulder is cast steel material.

3432-1

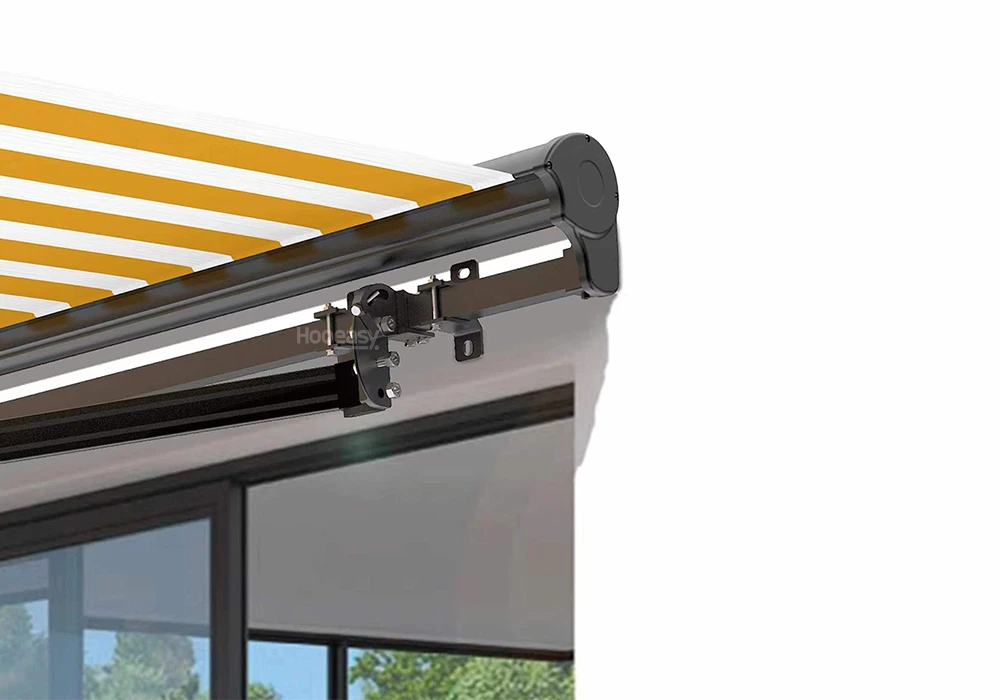

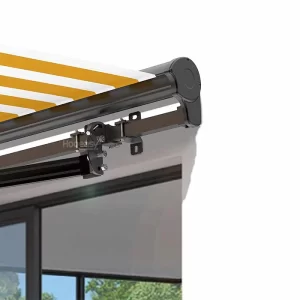

Side cover

The side cover is available.

3432-2
Control

Control by handle crankle.

Optional Brackets

Standard Ral-Frame

Specification

SizeCassetteTorsion BarRollerFront Bar
Max.395x400cmHalf-cassette
151x72mm		40x40mmφ78mm56x43mm
Min.250x300cm
Support ArmsFabricGear BoxBracket
Big Arms:59x31mm280g/㎡ Polyester
(Acrylic)+PU coating		v1:7Standard Regular Wall Bracket
Small Arms:51x26mmOptional：Bracket for ceiling and wall
Length(cm)Outspread(cm)Carton Size(cm)40’HQ
395400399x30x19.5229pcs
350400350354x30x19.5229pcs
295400350300299x30x19.5350pcs
250350300254x30x19.5350pcs

What a Pergola or Awning can do for ME

product-2
Lighting for outdoors.

Adjust light exactly as you need it. And to determine the atmosphere. Outside: with Hooeasy.

product-1
Sun protection in all dimensions.

Protect from excessive sun. Regulate the climate completely energy-saving. Put shadows where it is needed quickly: with Hooeasy.

product-3
More space for the summer.

Re-invent the summer seat. Enlarge the house with sunny and shady rooms, even outdoors. Setting up islands for relaxation and relaxation: perfect with awnings.
