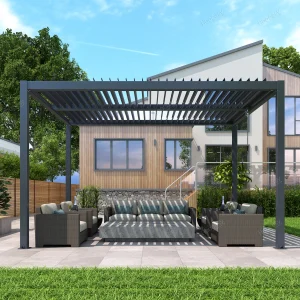

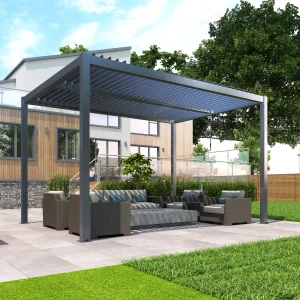

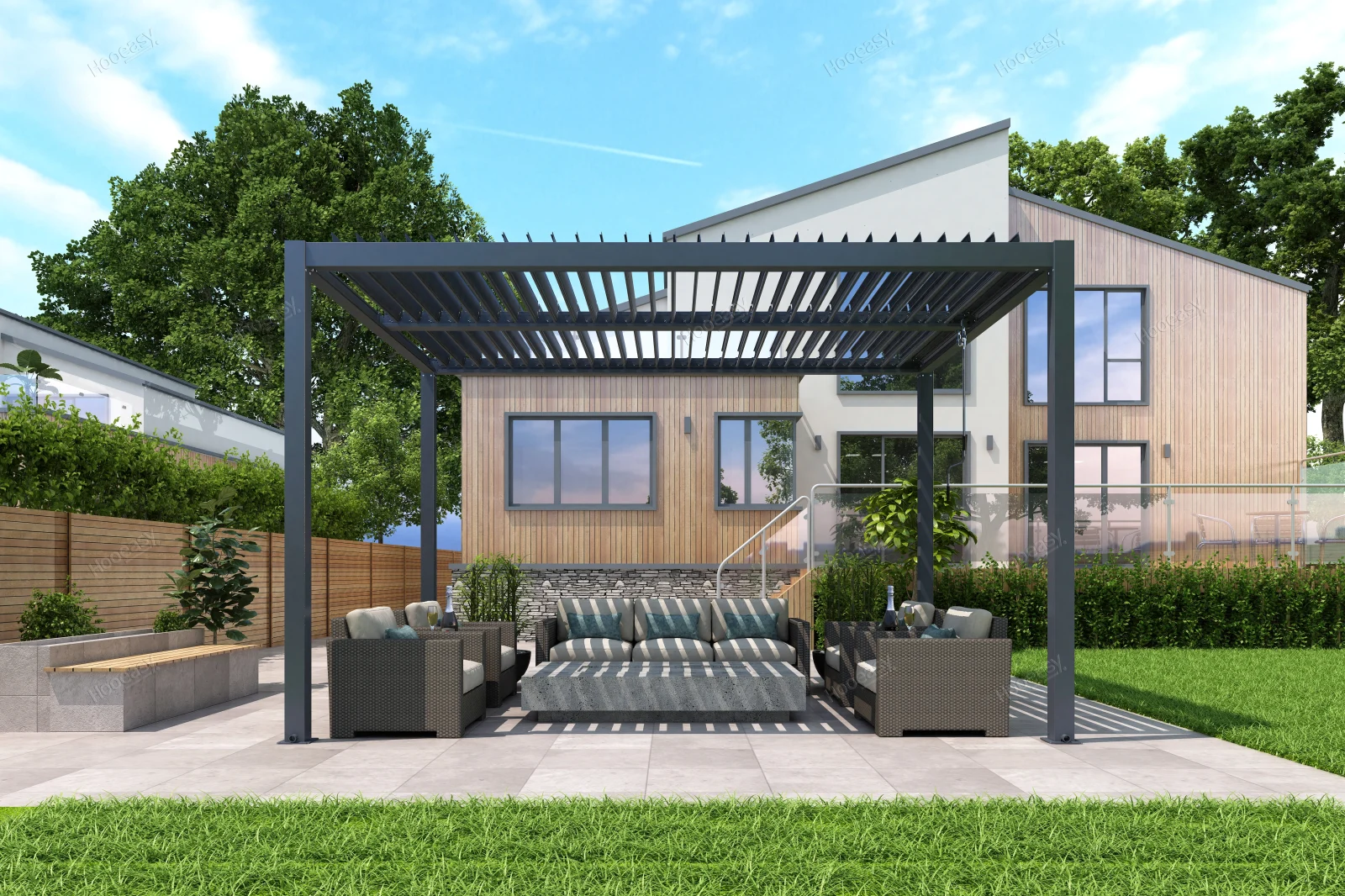

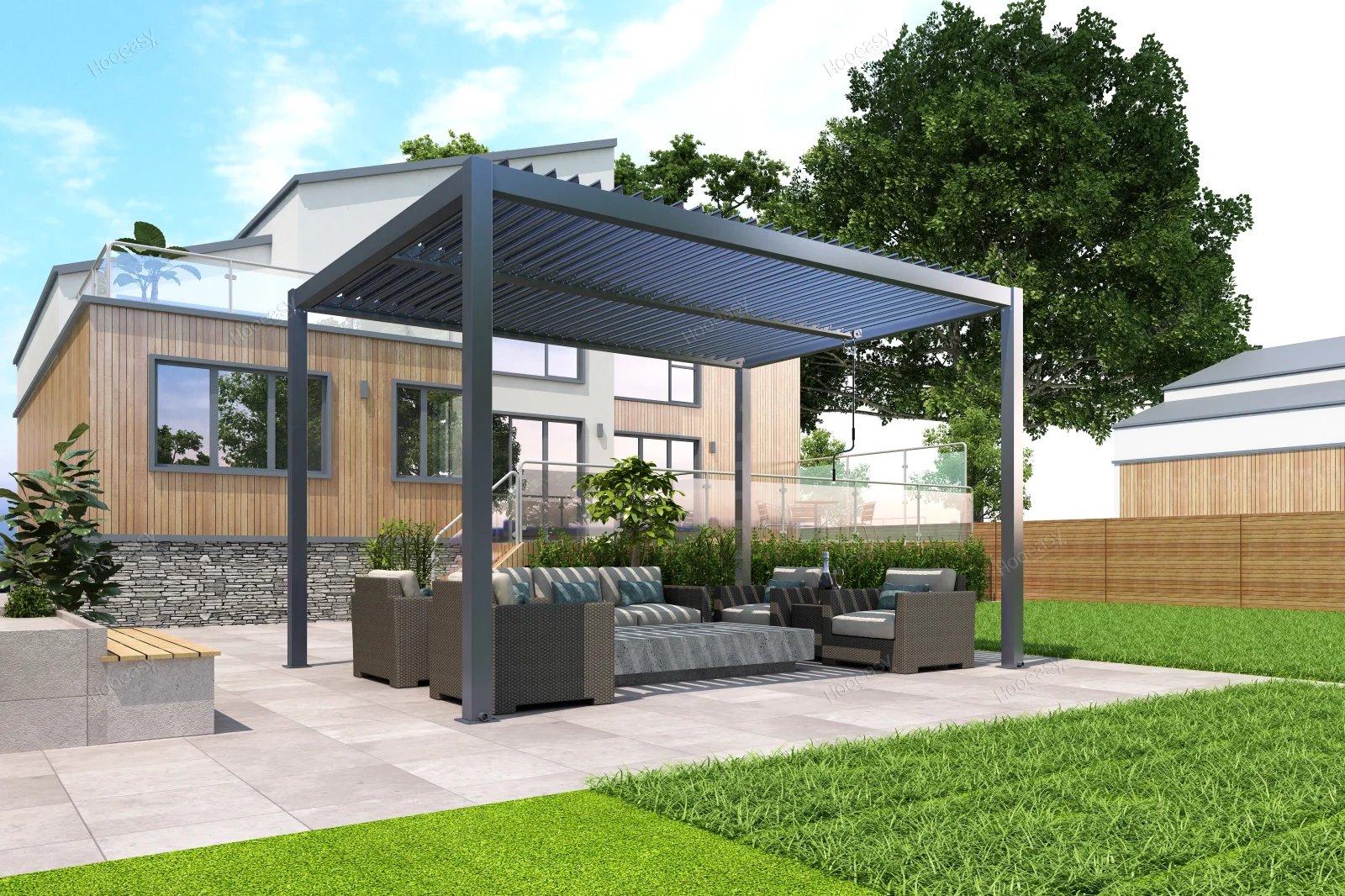

Hooeasy Aluminum Louver Roof Pergola Bioclimatic with RGB Lighting 8610

Introduction

Hooeasy pergola 8610 bring functionality and style to outdoor space,making a fantastic option when you want to protect an outdoor area from rain,wind and heat all year round.

Hooeasy 8610 pergola can be easily integrated into any outdoor space,making perfect for commercial and residential applications.

The comfort is ensured by a perfect automation systems that can be remotely controlled and a range of accessories that will extremely enhance the pergola’s use experience.

  • With the smooth and clean surface, this pergola is made of the aluminum and presents the state-of-the-art style and excellent quality. All of the fasteners are made of the stainless steel which enables this product to be rust-free and have a long lifespan.
  • The clasp connection structure is adopted for the slat, which is convenient and quick to install.
  • The outlet is directly open in the column without the need for additional drainage pipes. It is concise and artist, and the installation is more easy and convenient.
  • The middle beam is placed higher than the two sides; the water can flow to the two sides faster and this reduces the burden of the beam.
  • This canopy is waterproof with the seal type.
  • With the large cross beams and thicken slat to increase the loading capacity,it can resist the dry snow.
  • RGB lamp or LED white lamp is optional to color your outdoor space.
  • lt can operate 3000 times without major failure.
  • The whole installation will be completed within 2 hours.

Match Following Accessories

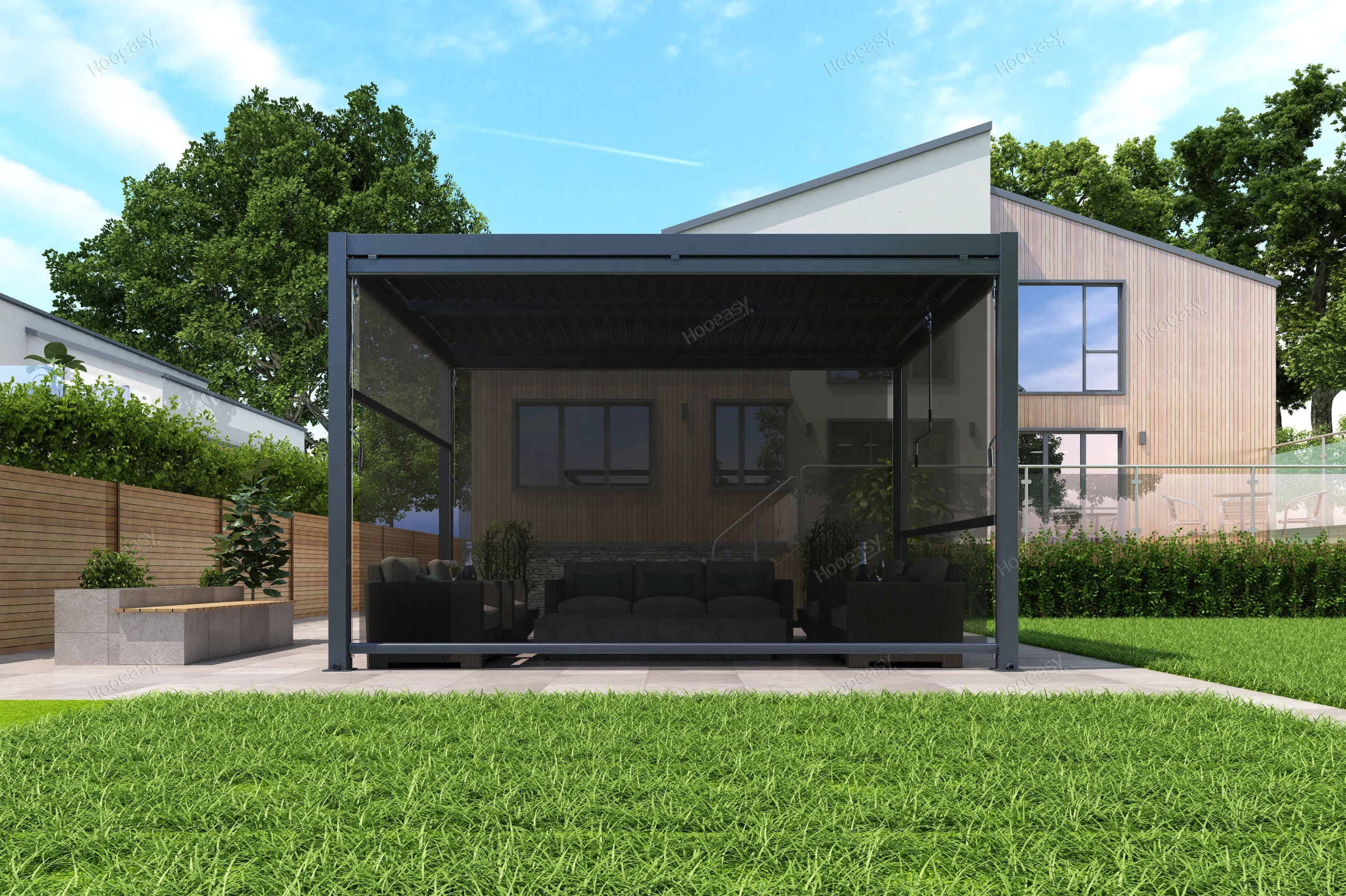

pergola 8610-5

8610+1962

It is a promotional screen for matching our 8610 per gola system.It is simple and econimical to afford for each family.

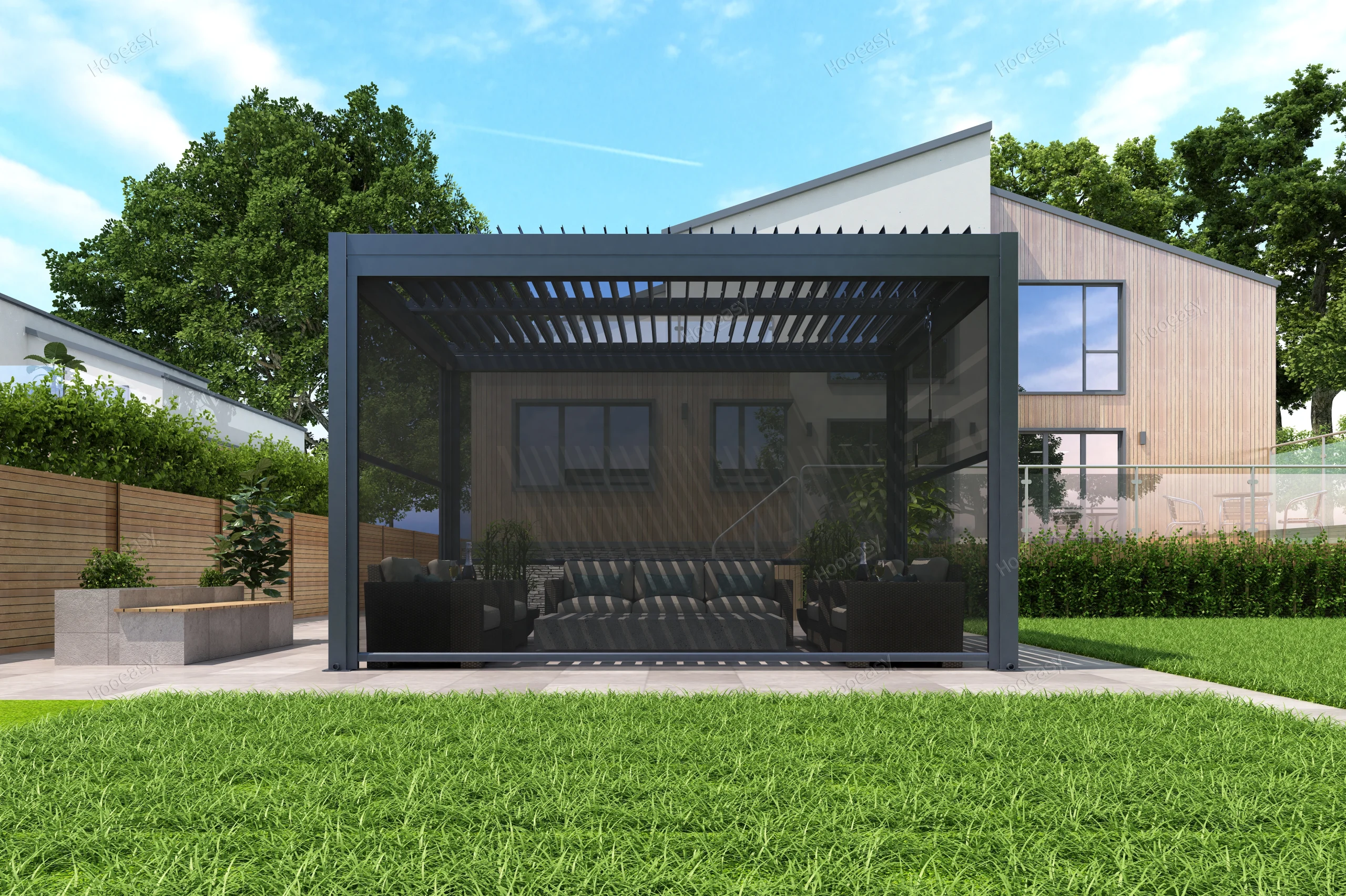

pergola 8610-6

8610+9800

It is a superb zip screen which perfectly matches our 8610 pergola sytem. It is graceful and exquisite in design.

pergola 8610-5

8610+9710

It is an interesting option for screens matching our 8610 pergola system.It can be combined at your will.

Standard Ral-Frame

Ral9010 Milk White
Ral9010 Milk White
PC0102 Grey
PC0102 Grey
PG3314 Black
PG3314 Black
Manual
Manual
Switch-remote-controller
Switch-remote-controller
Weather-Sensor
Weather-Sensor
Radiator
Radiator
Light
Light

Specification:

Alu. Frame:
1.Alu.Beam size:120x100x2.0 mm;
2.Alu.Column: 100x100x1.6 mm;
3.Alu. blade: 145x23x1.4mm;
4.Height of column: 230cm;
5. Packing: (3x3m/ 3x4m/ 4x4m)
6. Manual.
7.LED light are optional
Max size: 400×400×230cm
Min size: 300x300x230cm

Size(cm)Carton Size (cm)Carton quantity40’GP40’HQ
300×300 (Top actual size:290×290 bottom actual size: 296×296)Louvers 145x34x30.5190100
Beams 287×26.5×251
Columns 261x22x221
300×400 (Top actual size: 290×390 bottom actual size: 296×396)Louvers 145x34x2228090
Beams 386×26.5×251
Columns 261x22x221
400×400(Top actual size: 389×389 bottom actual size:395×395)Louvers 194x34x2227090
Beams 386×26.5×251
Columns 261x22x221

What a Pergola or Awning can do for ME

product-2
Lighting for outdoors.

Adjust light exactly as you need it. And to determine the atmosphere. Outside: with Hooeasy.

product-1
Sun protection in all dimensions.

Protect from excessive sun. Regulate the climate completely energy-saving. Put shadows where it is needed quickly: with Hooeasy.

product-3
More space for the summer.

Re-invent the summer seat. Enlarge the house with sunny and shady rooms, even outdoors. Setting up islands for relaxation and relaxation: perfect with awnings.
